Description

• 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
• Two antennas greatly increase the wireless robustness and stability
• Easy wireless security encryption at a push of WPS button
• IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
• Compatible with IPv6 -the more recent Internet Protocol version
• TP-LINK Tether App allows quick installation and easy management using any mobile device
• HARDWARE FEATURES
• Interface 4 10/100Mbps LAN PORTS
• 1 10/100Mbps WAN PORT

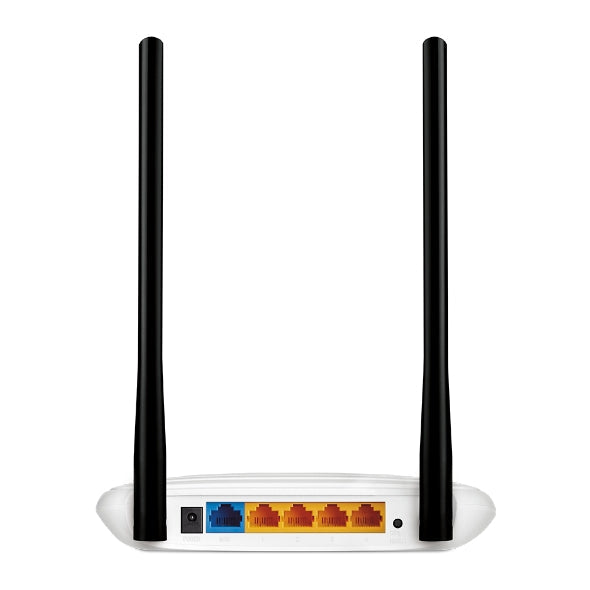

• Ports 4 × 10/100Mbps LAN Ports, 1 × 10/100Mbps WAN Port
• Button WPS/Reset Button
• External Power Supply 9VDC / 0.6A
• Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions ( W x D x H ) 6.9 x 4.6 x 1.3 in. (173 x 118 x 33mm)
• Antenna 2*5dBi Fixed Omni Directional Antenna
• WIRELESS FEATURES
• Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency 2.4-2.4835GHz
• Signal Rate 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity 270M: -70dBm@10% PER
• 130M: -74dBm@10% PER
• 108M: -74dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -87dBm@8% PER
• 6M: -90dBm@10% PER
• 1M: -98dBm@8% PER
• Transmit Power CE:
• <20dBm
• FCC:
• <30dBm
• Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
• SOFTWARE FEATURES
• Quality of Service WMM, Bandwidth Control
• WAN Type Dynamic IP/Static IP/PPPoE/
• PPTP/L2TP/BigPond
• Management Access Control
• Local Management
• Remote Management
• DHCP Server, Client, DHCP Client List,
• Address Reservation
• Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
• Dynamic DNS DynDns, Comexe, NO-IP
• VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
• Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
• Firewall Security DoS, SPI Firewall
• IP Address Filter/MAC Address Filter/Domain Filter
• IP and MAC Address Binding
• Protocols Support IPv4 and IPv6
• Guest Network 2.4GHz Guest Network x1
• Working Modes Wireless Router, Range Extender, Access Point, WISP
• OTHERS
• Certification CE, FCC, RoHS

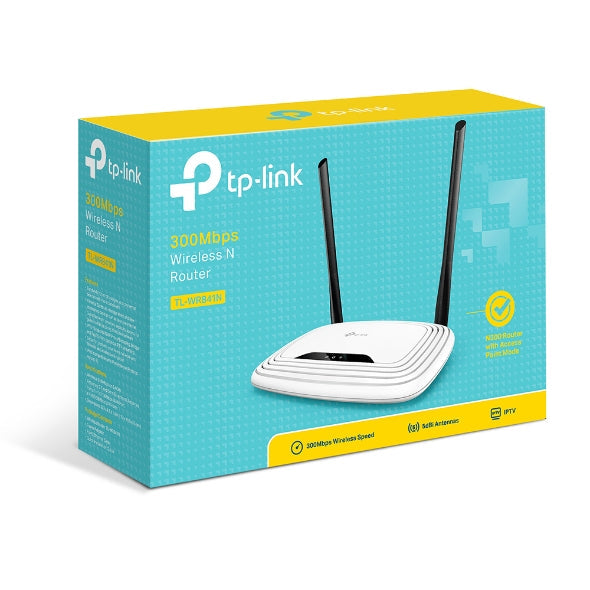

• Package Contents Wireless Router TL-WR841N
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
• System Requirements Microsoft® Windows® 10/8.1/8/7/Vista/XP/2000/NT/98SE,
• MAC® OS, NetWare®, UNIX® or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser
• Cable or DSL Modem
• Subscription with an internet service provider (for internet access)
