Description

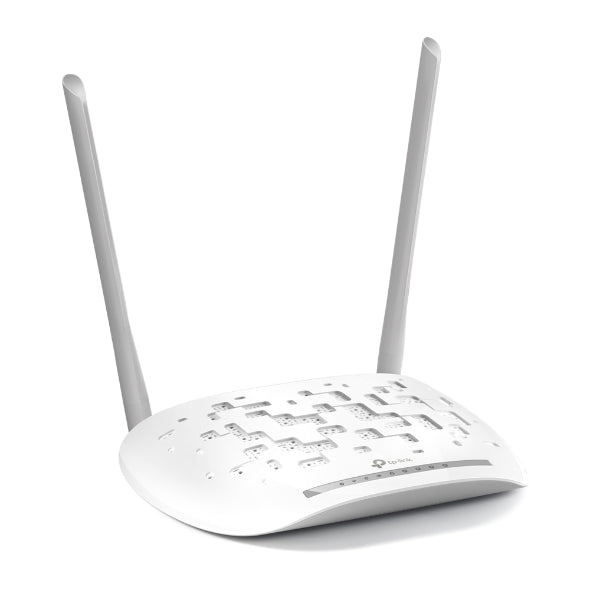

• ADSL 2/2+ Modem, Wireless N Access Point and 4-Port Router, in a single device
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even HD video streaming
• Easy Setup Assistant with multi-language support provides quick & hassle-free installation
• Easy one-touch wireless security encryption with the"WPS" button and Easy Wi-Fi On/Off button
• HARDWARE FEATURES

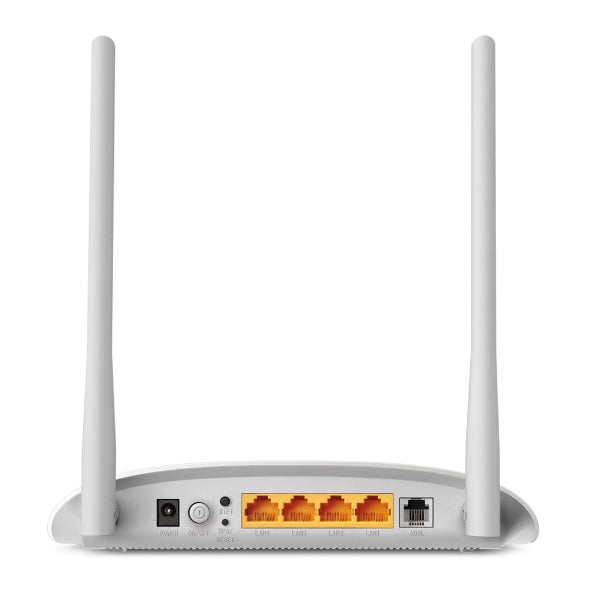

• Interface 4 10/100Mbps RJ45 Ports
• 1 RJ11 Port
• Button 1 Power On/Off Switch
• 1 WPS Button
• 1 Wi-Fi On/Off Button
• External Power Supply 9VDC/0.85A
• IEEE Standards IEEE 802.3, 802.3u
• ADSL Standards Full-rate ANSI T1.413 Issue 2,
• ITU-T G.992.1(G.DMT),
• ITU-T G.992.2(G.Lite)
• ITU-T G.994.1 (G.hs),
• ITU-T G.995.1
• ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),
• ITU-T G.992.4 (G.lite.bis)
• ADSL2+ Standards ITU-T G.992.5
• Dimensions ( W x D x H ) 7.7*5.1*1.4 inch ( 195*130*35 mm )
• Antenna Type Omni directional, Detachable, Reverse SMA
• Antenna Gain 2x5dBi
• WIRELESS FEATURES
• Wireless Standards IEEE 802.11n, 802.11g, 802.11b
• Frequency 2.400-2.4835GHz
• Transmit Power <20dBm(EIRP)
• Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
• Wireless MAC Filtering
• SOFTWARE FEATURES
• Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p
• Security NAT Firewall,
• SPI Firewall,
• MAC / IP / Packet / Application / URL Filtering,
• Denial of Service(DoS),
• SYN Flooding,
• Ping of Death
• Management Web Based Configuration(HTTP),
• Remote management,
• Telnet management,
• Command Line Interface,
• SSL for TR-069,
• SNMP v1/2c,
• SNMP over EOC,
• Web Based Firmware Upgrade,
• CWMP(TR-069),
• Diagnostic Tools
• Port Forwarding Virtual server, DMZ, ACL(Access Control List)
• VPN Pass-Through PPTP, L2TP, IPSec Pass-through
• ATM/PPP Protocols ATM Forum UNI3.1/4.0,
• PPP over ATM (RFC 2364),
• PPP over Ethernet (RFC2516),
• IPoA (RFC1577/2225),
• PVC - Up to 8 PVCs,
• Advanced Features Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
• Dynamic Host Configuration Protocol (DHCP), DHCP relay;
• Network Address Translation (NAT);
• PVC/Ethernet Port Mapping
• VLAN, 802.1P,
• Static Routing, RIP v1/v2 (optional);
• DNS Relay, DDNS,
• IGMP snooping V1/2
• IGMP Multicast,
• UPnP
• OTHERS
• Certification CE, FCC, RoHS
• Package Contents TD-W8961ND
• External Splitter
• RJ-11 Telephone Cable
• RJ-45 Ethernet Cable
• Quick Installation Guide
• Resource CD
• Power Adapter
• System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux.
